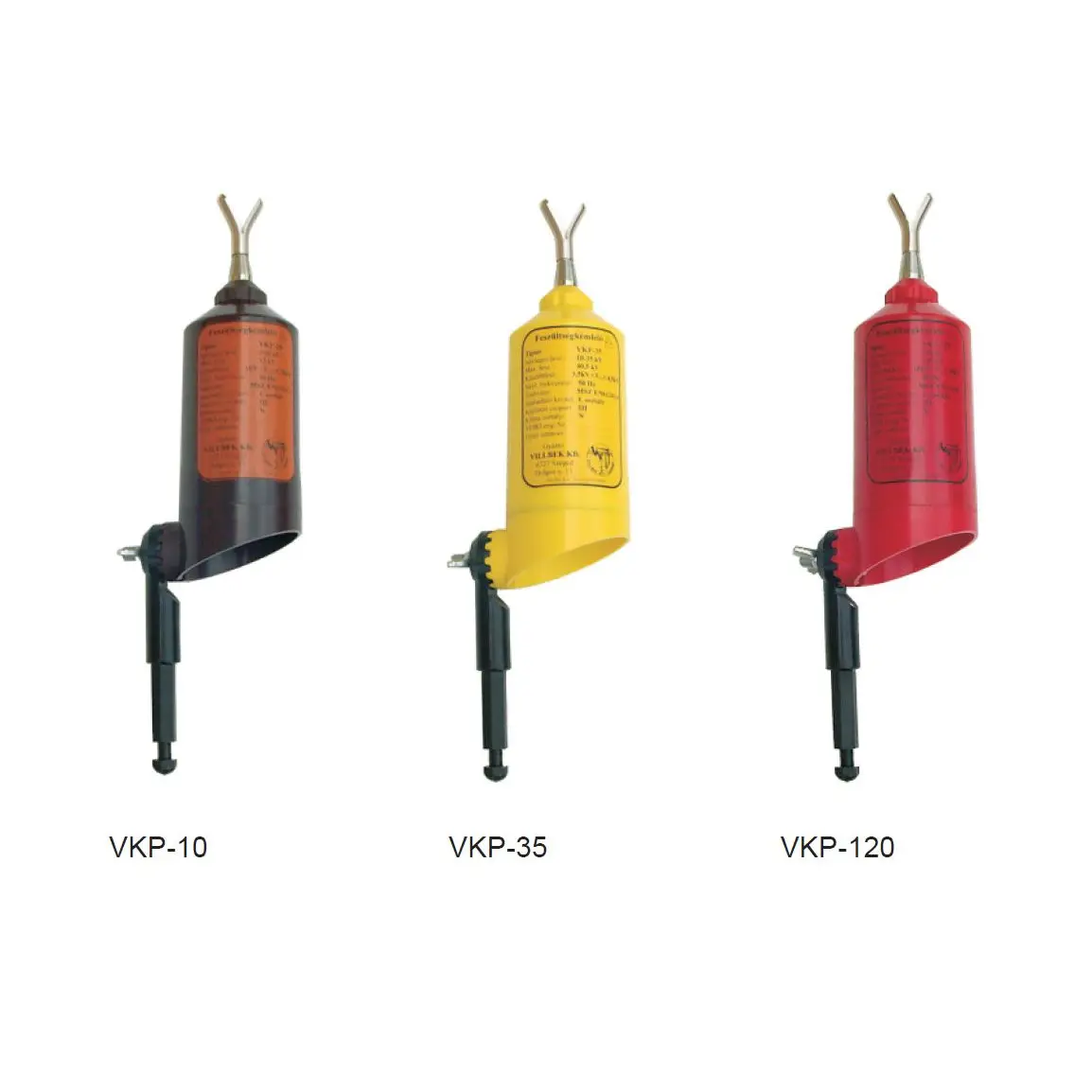

They can be used for indicating rated voltage on medium voltage AC equipments. They can be used together with operating rods appropriate for the tested voltage levels. Detecting the rated voltage level the device gives audible signal and flasing light indication as well.
| Type
|
Rated voltage
|
Max. voltage | Treshold voltage
|
Product code |
| VKP-10 | 3-10 kV | 12 kV | 1,1 kV<= Uk <=1,3 kV | 505001 |
| VKP-35 | 10-35 kV | 40,5 kV | 3,5 kV <=Uk<= 4,5 kV | 505002 |
| VKP-120 | 120 kV | 145 kV | 18 kV <=Uk <=48 kV | 505005 |
